The basic idea of PTR technology as a complex solution is to take advantage of the potential of the slow process of thermal decomposition of various kinds of raw materials containing organic substances and produce products - fuels, further used in energy units.

Input materials (raw materials), which are used in the PTR technology

- rubber material, tires
- RDF (refuse derivede fuel)
- plastics, sorted plastic mixtures
- biomass - agricultural waste
- municipal waste, sorted, mixed
- contaminated soil
- electro-waste

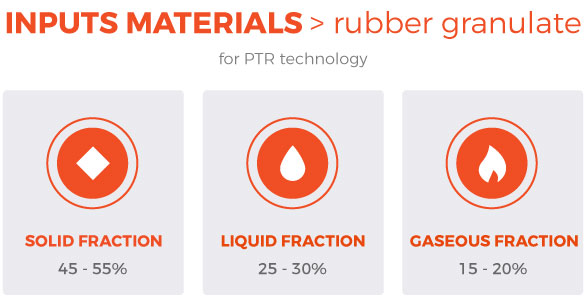

The slow thermal decomposition is an ongoing process in closed fuel cells without air access. The fuel cells are filled with input organic raw material, then the each cell is sealed and placed in a PTR module where in the following 2-3-hour* process a thermal conversion of the input material is processed into 3 output fractions: gaseous, liquid and solid.

*NOTE: The process time for each input material is different, herein a given example of rubber material.

ptr

The actual process of the thermal decomposition takes place in the temperature range from 350 to 500 °C in sealed fuel cells, which is a basic difference between PTR technology and other technologies such as pyrolysis retorts.

The aim of the PTR solution is to effectively utilize different input materials for getting solid, gaseous and liquid products of stable parameters, which have additional material and energy potential.

The process scheme



*NOTE: The Process scheme of current project PTR 1000 kW6 - installation in London, input material - schredered rubber (cars/trucks)

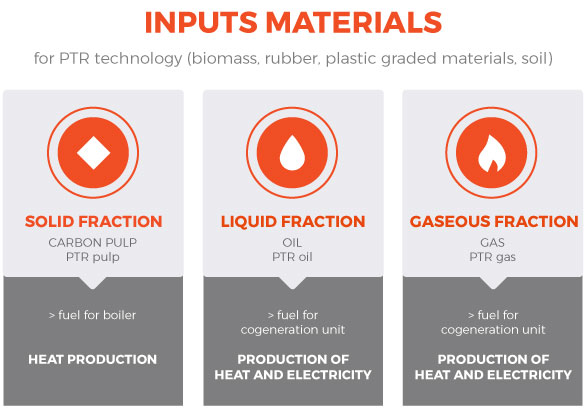

The products of the PTR decomposition process are also further exploitable

1. In the area of fuels such as gaseous and liquid fuels for propulsion of gas or dual cogeneration units as well as solid fuels for boiler rooms or also as fuel stabilizers
2. In the area of special chemistry and agriculture as sorption material in filters as well as various fertilizers in agriculture



Products are certified for specific use as products or as fuels, and can be described as follows:

Gaseous fraction* – serves as a fuel for gas cogeneration units or generators, i.e. for the production of electricity. Parameters of the gaseous fraction: Q = 30 MJ/m3, when the content of organic substances in the input material is at least 60% (particular parameters of the output fractions – fuels are determined during initial measurements, for a particular input material according to the investor´s requirements).

*NOTE: Fuel parameters are derived from test samples of rubber material, which, however, according to the origin and age may vary (up to 5%).

Liquid fraction* – serves as a commercial fuel for energy use, as well as a fuel for a dual cogeneration unit or a generator. Parameters of the liquid fraction: Q = 34MJ/kg, when the content of organic substances in the input material is at least 60% (particular parameters of the output fractions – fuels are determined during initial measurements, for a particular input material according to the investor´s requirements).

*NOTE: Fuel parameters are derived from test samples of rubber material, which, however, according to the origin and age may vary (up to 5%).

Solid fraction* – serves as a commercial solid fuel, it can also be briquetted or the carbonaceous material may be used as a stabilizer of low-calorific fuels. Parameters of the solid fraction: Q = 30-35 MJ/m3, when the content of organic substances in the input material is at least 60% (particular parameters of the output fractions – fuels are determined during initial measurements, for a particular input material according to the investor´s requirements)

*NOTE: Fuel parameters are derived from test samples of rubber material, which, however, according to the origin and age may vary (up to 5%).





The advantage of the PTR technology is the positive energy balance. The production of energy (electricity and heat) exceeds its own consumption by at least 80%. Thanks to its own heat utilization in the PTR system, it is possible to effectively reduce the overall power consumption.

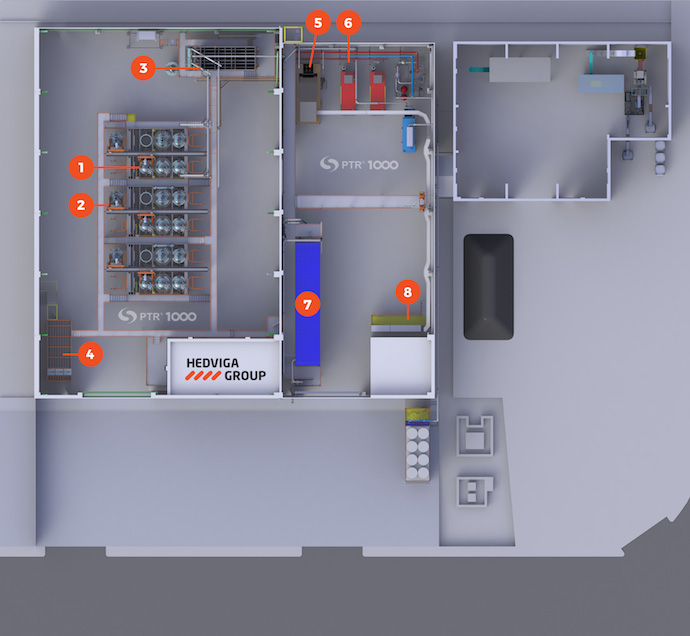

Installation of Technology PTR 1000 kW6*

PTR 1000 kW6  is a designed complex solution with an installed capacity of 1MWe and consists of one separate unit PTR kW6 1000, consisting of 6 PTR modules and accessory equipment and is designed for an input capacity of 1-1.5 tonnes of processing of crushed material per day (e.g. crushed tires, RDF and biomass), according to the investor´s requirements. The maximum capacity is designed for 11 thousand tonnes of input material per year, followed by direct energy utilization of the produced gaseous fuel and liquid fuel in power units.

The operation of processing and energy utilization of the modified input material assumes operating mode with at least 320 working days, 3 employees per shift and a separate workplace for pre-treatment and logistics of the input material (collection, crusher, storage).

*NOTE: Installing of PTR 1000 kW6 London, UK. Commissioning 12/2016.



  • 1PTR module
  • 2Handling system
  • 3Cooling module
  • 4Control module
  • 5Dual cogeneration unit
  • 6Gas cogeneration unit
  • 7Gas storage
  • 8LV panel
